What if Nx Plugins Were More Like VSCode Extensions

What if Nx Plugins Were More Like VSCode Extensions

Enhance, but don’t interfere! That’s the ideal! And this is how extensions work in VSCode (or Webstorm). You can use VSCode without any extension and get some basic functionality, or you can add an extension on top to enhance your experience and, ideally, increase your productivity.

Table of Contents

Prefer a video? We’ve got you covered!

Also, make sure to check out Launch Nx Conf on Thursday, Feb 8th, where we’ll have more in-depth talks about Project Crystal as well as other exciting features around Nx and Nx Cloud.

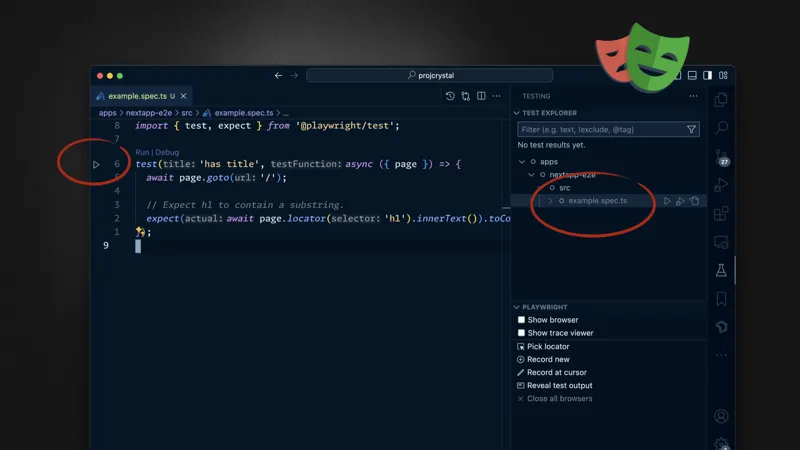

Take, for instance, the Playwright plugin. You install it, and it’ll automatically detect the Playwright config file and enhance your workspace by providing quick run buttons alongside your tests or even a dedicated Test Explorer window.

The Playwright VSCode extension enhancing the developer experience

Adding Nx to an Existing Monorepo

You can add Nx to an existing npm/yarn/pnpm monorepo quite straightforwardly. You run:

npx nx@latest init

You’ll get an nx package installed and an nx.json allowing you to define task dependencies and caching. With that, you're now able to run commands like nx build <your project> or nx run-many -t build test to run all build and test targets in your workspace in parallel. Nx will read and use your existing package.json scripts. I've written an in-depth blog post about adopting Nx in such a scenario.

This is the most lightweight setup you can get while still getting some improvements via Nx regarding faster task running and more intelligent parallelization. But, you need to deal with the remaining of the monorepo setup.

Project Crystal

Nx always had more to offer, though, which it mainly did through its plugins. They’re optional but usually something you’d get set up when creating a new workspace with create-nx-workspace. Nx Plugins are extremely powerful, helping you not only create and configure new monorepos, but also taking away the burden of integrating various tooling as well as providing features for enforcing consistency and helping with maintainability. These aspects are fundamental in enterprise settings, where Nx Plugins have proven to help teams successfully manage their monorepos.

However, this is a balancing act. More abstraction and automation means more support but also potentially a learning curve and giving up some low-level control. It also requires a slightly more significant upfront investment when migrating to an Nx plugin-powered monorepo.

These are things we wanted to solve, and Project Crystal is the first step in that direction.

Some of the main objectives of Project Crystal are to...

  • make Nx plugins more transparent
  • reduce the amount of configuration required
  • allow Nx plugins to be drop-in enhancements in existing npm/yarn/pnpm monorepos
  • allow for a migration to an Nx plugin-powered monorepo

Project Crystal Plugins in an Nx Monorepo

Note: starting with Nx 18, Project Crystal will be active for new workspaces only. You can opt-in to use them though.

When you create a new Nx workspace using

npx create-nx-workspace myorg

... and you choose an “integrated monorepo” you’ll get the usual setup powered by Nx Plugins and all the features and benefits that come with them. Where you’ll see Project Crystal in action is when you open a project.json file, which will most likely look like the following:

1{ 2 "name": "reactapp", 3 "$schema": "../../node_modules/nx/schemas/project-schema.json", 4 "sourceRoot": "apps/reactapp/src", 5 "projectType": "application", 6 "targets": {}, 7 "tags": [] 8} 9

Inferred Targets

Starting with Nx 18 and Project Crystal, we don’t generate any targets anymore, but the corresponding Nx plugin instead infers them. If we open the nx.json, you'll see a new property, plugins:

1{ 2 ... 3 "plugins": [ 4 { 5 "plugin": "@nx/vite/plugin", 6 "options": { 7 "buildTargetName": "build", 8 "previewTargetName": "preview", 9 "testTargetName": "test", 10 "serveTargetName": "serve", 11 "serveStaticTargetName": "serve-static" 12 } 13 }, 14 { 15 "plugin": "@nx/eslint/plugin", 16 "options": { 17 "targetName": "lint" 18 } 19 }, 20 { 21 "plugin": "@nx/cypress/plugin", 22 "options": { 23 "targetName": "e2e", 24 "componentTestingTargetName": "component-test" 25 } 26 }, 27 ... 28 ], 29 ... 30} 31

Notice the options property defining the names of the potentially inferred targets for each plugin. These targets will be generated dynamically s.t. you can still run nx build reactapp even though there's no build target explicitly defined in the project.json of your apps/reactapp project.

This dramatically reduces the redundancy of repeatedly configuring the same tasks (e.g., Jest or Vitest tasks) throughout your various projects. Instead, with this new approach, you get the defaults, and if you need to override them, you can still define them in your project.json file as you were accustomed to before.

Visualizing Inferred Targets

Dynamically inferred targets help with the maintainability aspect and reduce the configuration overhead overall. But how do we know which targets are available for a given project?

Option 1 is to run the following command:

npx nx show project reactapp --web

This opens your browser with the following view:

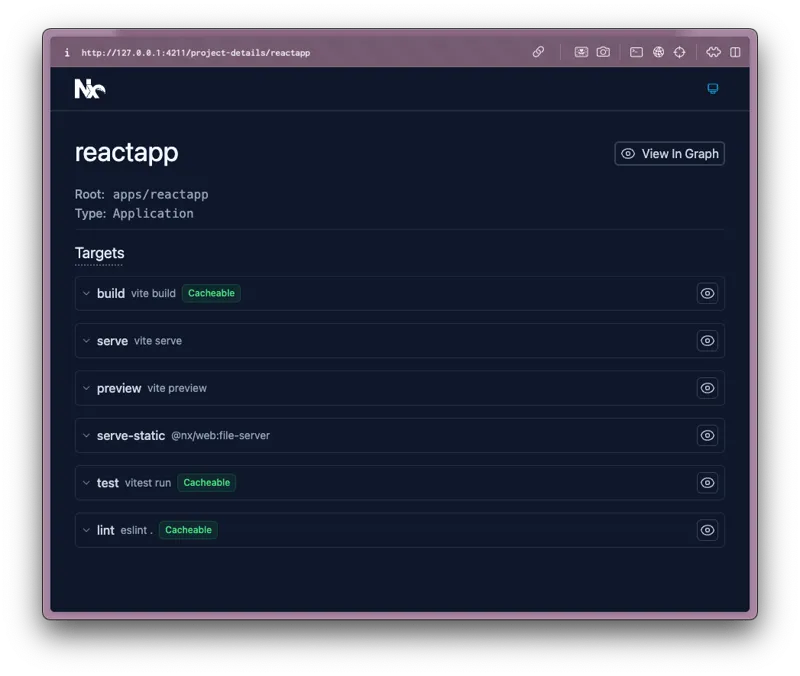

Browser view reads "reactapp, root: apps/reactapp, type: application" and shows a list of targets. Browser view of the inferred targets

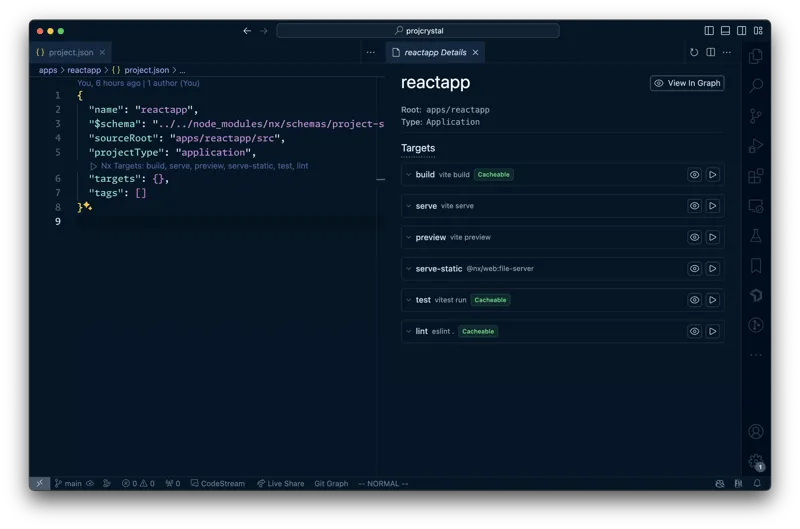

Option 2 is Nx Console, which is an extension for VSCode as well as IntelliJ (Webstorm etc.). It comes with a project detail view, as shown below, as well as “Codelens” features that enhance your configuration files with context-based information and features.

Nx Console showing the inferred targets in a dedicated view

More Transparency and a Single Source of Truth

We also wanted the new approach to plugins to be closer to the actual CLI tool of the framework you’re using. If you have a React + Vite project, nx build should be as close as possible to the vite build while still providing the enhancements around caching configuration.

And this is what happens. Behind the scenes, the plugin configures caching with inputs and outputs and task dependencies (e.g., ^build) but then mostly pipes through to the Vite CLI (in this particular case), Remix, Next CLI, etc.

Furthermore, the framework-specific config — in the example of Vite, the vite.config.ts - is the single source of truth from which Nx infers configuration such as caching. If you change your Vite build.outDir, Nx automatically picks that up and uses that as the caching output directory.

Enhancing existing Monorepos with Nx Plugins

As mentioned earlier, one of the key goals of Project Crystal was to improve the adoption story of Nx Plugins, which implicitly also helps with migrating to Nx plugin-based monorepos. By reducing the config footprint of an Nx plugin and by automatically inferring tasks from existing framework configs, we’ve moved in a direction where plugins have become much more of a drop-in approach.

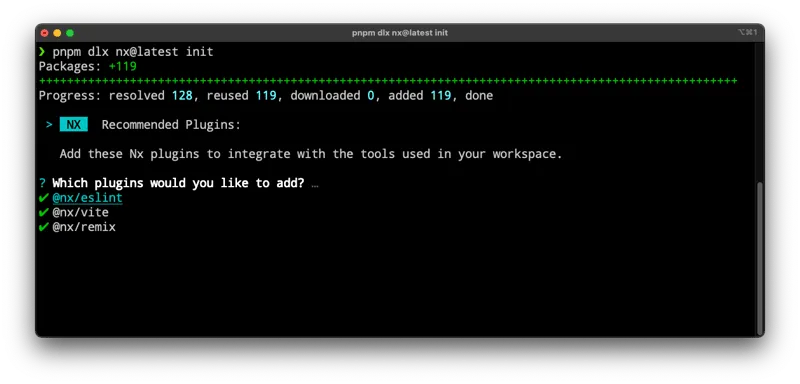

Starting with Nx 18, if you now run nx init on an existing npm/yarn/pnpm workspace, you'll also get asked about installing plugins based on the setup you have in your monorepo.

Asking about installing plugins based on your monorepo tooling

You can also obviously start with no plugin at all and incrementally add them as you go and feel comfortable using the new add command:

npx nx add @nx/vite

This is just the Beginning

We just released Project Crystal, so this is just the beginning of it. While we’ve moved many of our existing Nx plugins to adopt the new approach, there are still some more refinements to be done in the coming weeks. But we are excited about the possibilities Project Crystal enables for Nx and its adoption story going forward, making Nx plugins more approachable, transparent, and lightweight.
