Reduce the Number of Affected Projects in a CI Pipeline Execution

When it comes to troubleshooting long-running CI pipeline executions, there are different tools available to help you identify the potential issues. One such tool is the Affected Project Graph feature on the CI Pipeline Execution page.

Getting to the CI Pipeline Execution Affected Project Graph

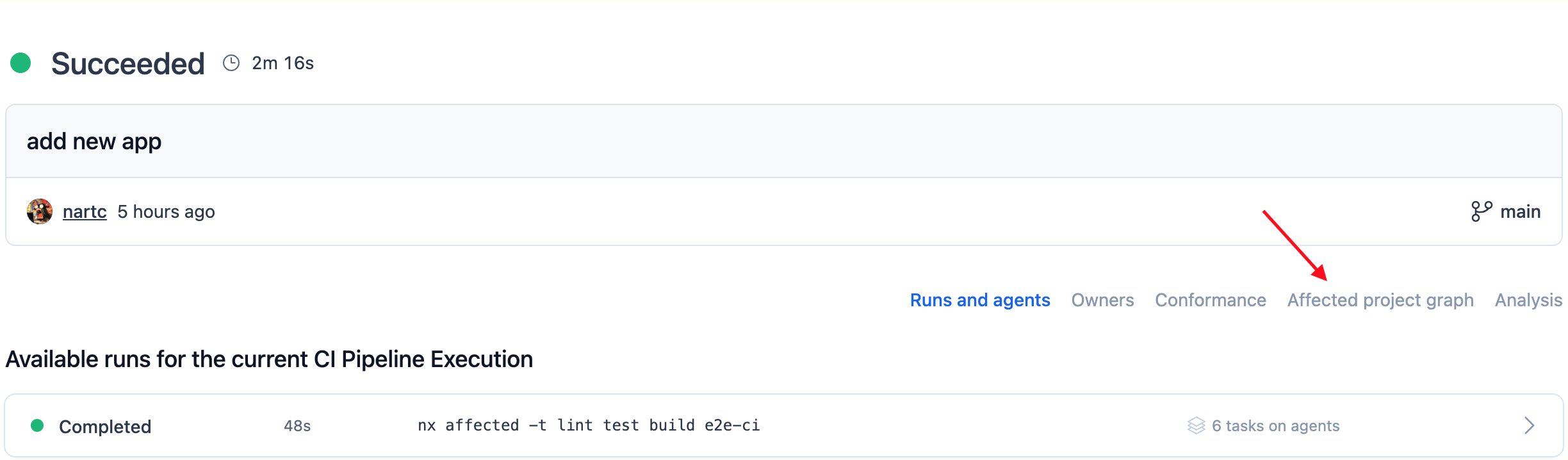

To access the affected project graph for the CI pipeline execution, navigate to the CI pipeline execution details page and click on the Affected Project Graph navigation item.

CIPE Affected Project Graph

The affected project graph visualizes the projects that are part of the current CI pipeline execution.

Identifying a Potential Over-run of a CI Pipeline Execution

In this recipe, we will walk through a scenario where the affected project graph can be used to identify a potential over-run of a CI pipeline execution.

This is our repository structure:

1apps/ 2├── web 3├── web-e2e 4├── nx-graph-test 5├── nx-graph-test-e2e 6└── recipes/ 7 ├── client 8 └── client-e2e 9libs/ 10├── ui (button and icon components) 11├── forms/ 12│ └── input 13└── tooltip 14

Our most recent CI pipeline execution affects everything in the repository.

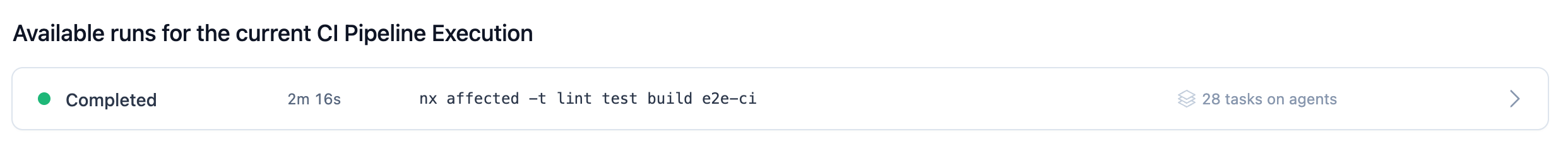

CIPE Affected Project Graph -- every tasks

Likewise, the affected project graph for the Ci pipeline execution also visualizes all projects because everything is affected.

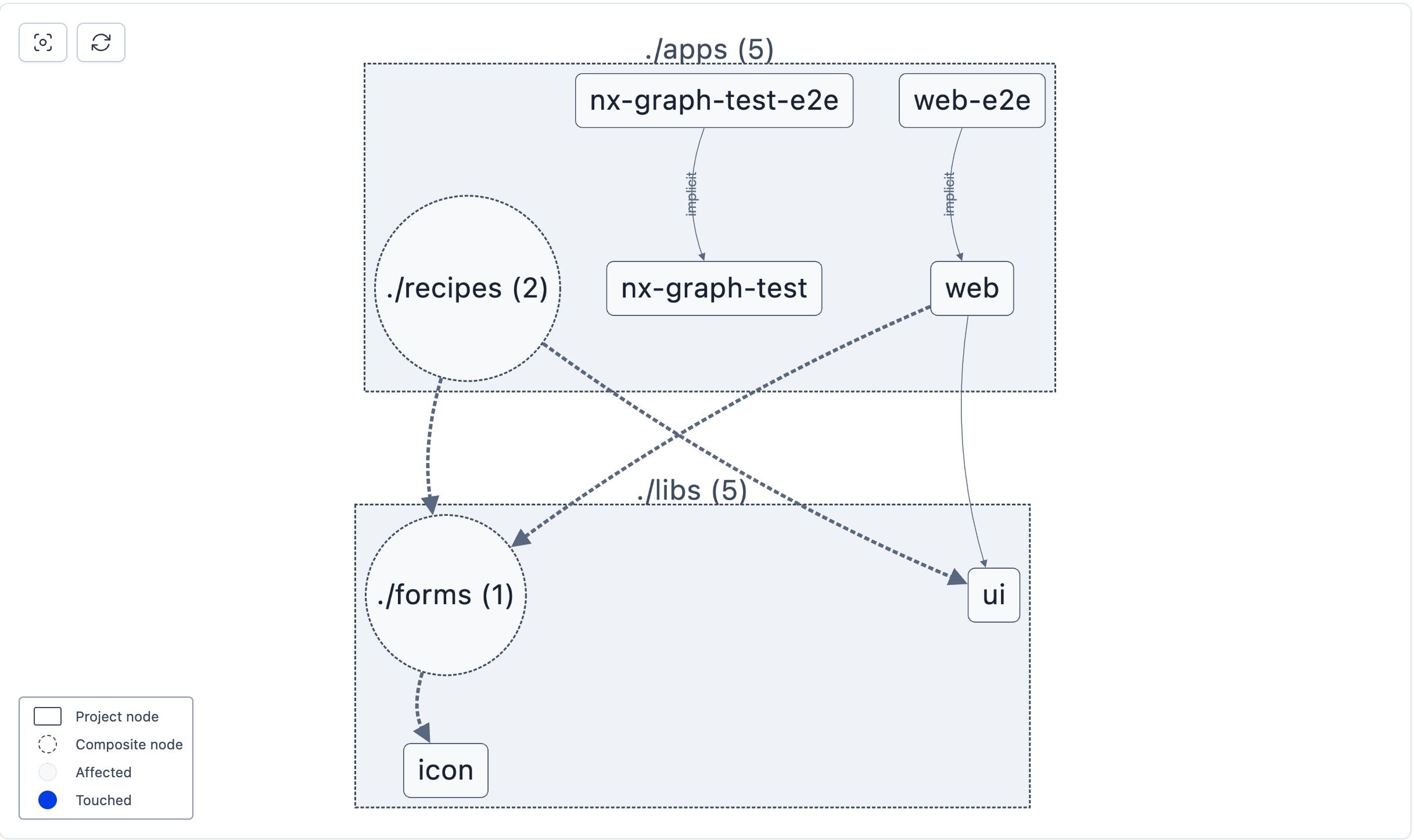

CIPE Affected Project Graph -- affect everything

Create a New CI Pipeline Execution with a Code Change

Our ui library has 2 components: button and tooltip. From the graph, we can see that both our apps client and web depend on the ui library: client uses the tooltip component and web uses the button component.

Let's make an update to the tooltip component and see how it affects our next CI pipeline execution. Pushing this change to our repository will trigger a new CI pipeline execution.

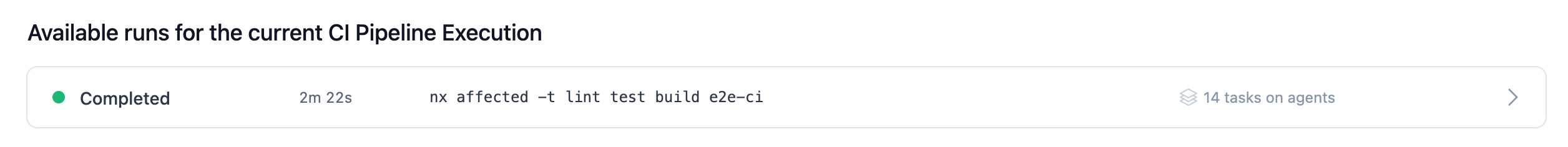

CIPE Affected Project Graph -- new CIPE

This CI pipeline execution contains 14 tasks that are affected by the change we made to the tooltip component.

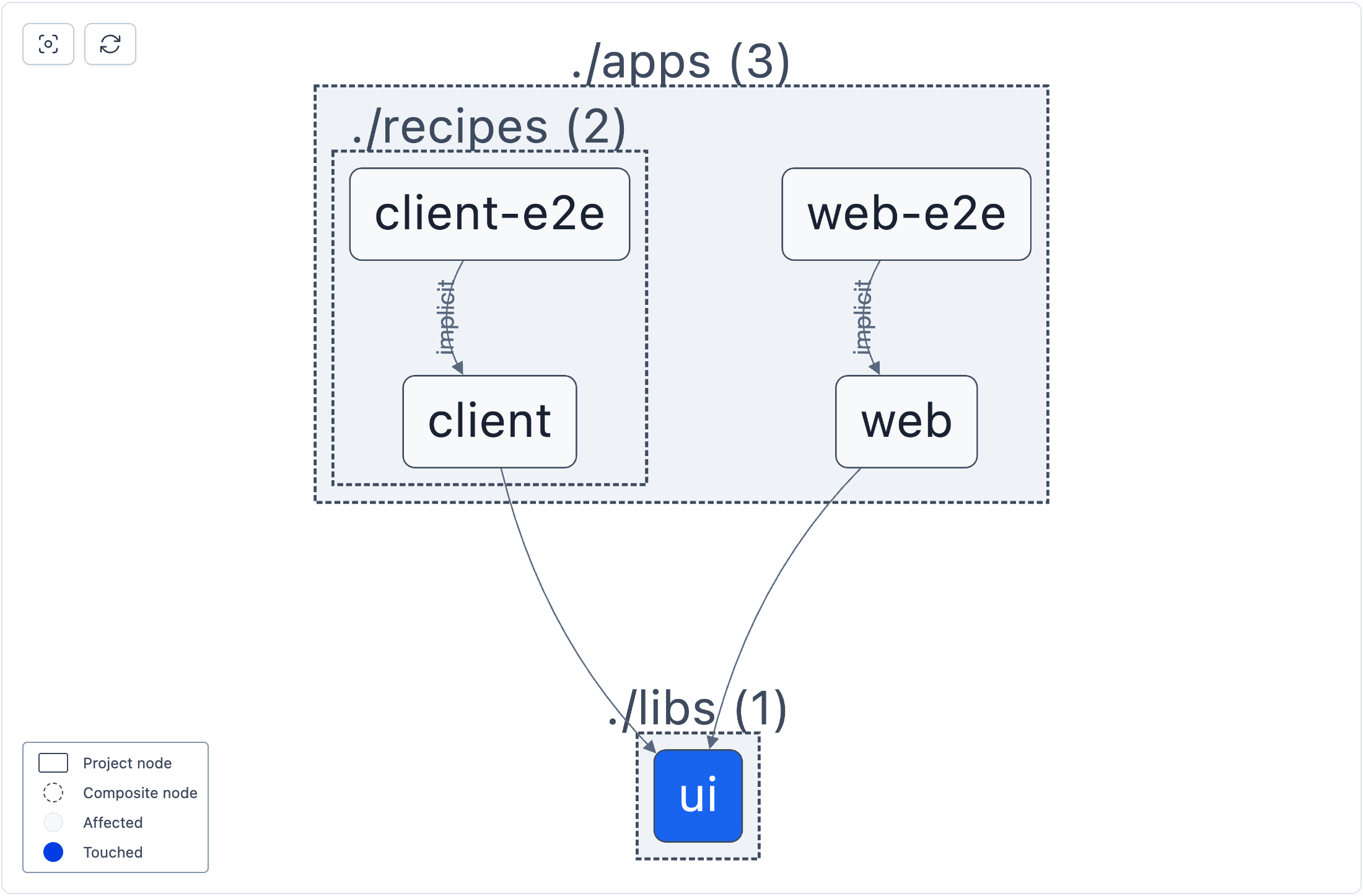

CIPE Affected Project Graph -- new CIPE tasks

The affected project graph also shows that the change to tooltip component , which is part of the ui library, affects both the client and web apps.

At this point, we can ask ourselves that "Should a change to the tooltip component affect both the client and web apps or should it only affect the web app?" Our goal should be to always have the most efficient CI pipeline executions possible. Decreasing the number of affected projects will allow the number of tasks to be reduced, which will reduce the overall CI pipeline execution time.

Break Up the Source of the Affected Projects

To achieve our goal, we can break up the ui library into 2 separate libraries: button and tooltip.

Check out our blog post about splitting large projects into smaller ones.

Once we have done this, we will end up with the following project graph:

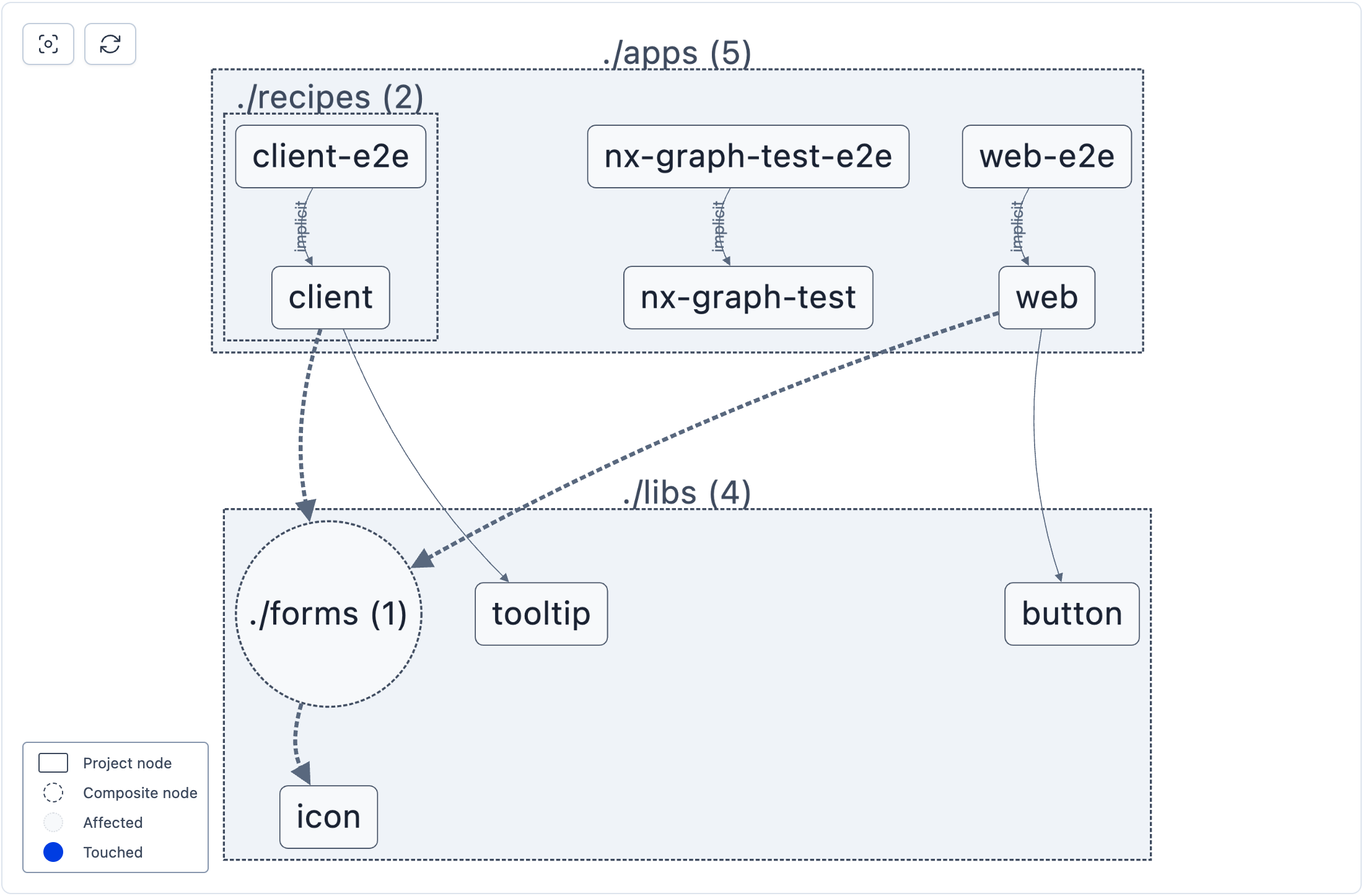

CIPE Affected Project Graph -- break up ui

Let's make a change to the button component this time and see how it affects our next CI pipeline execution.

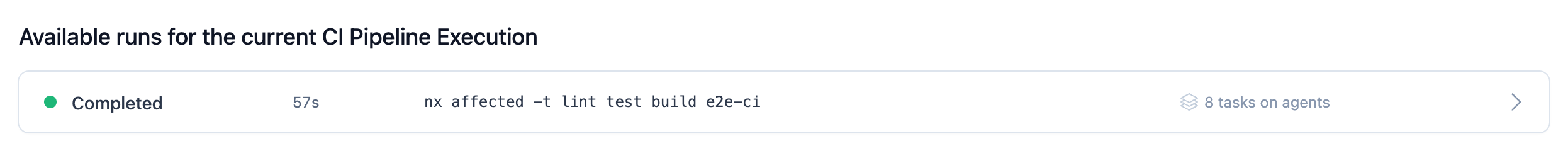

CIPE Affected Project Graph -- button tasks

We've reduced the number of affected tasks from 14 to 8.

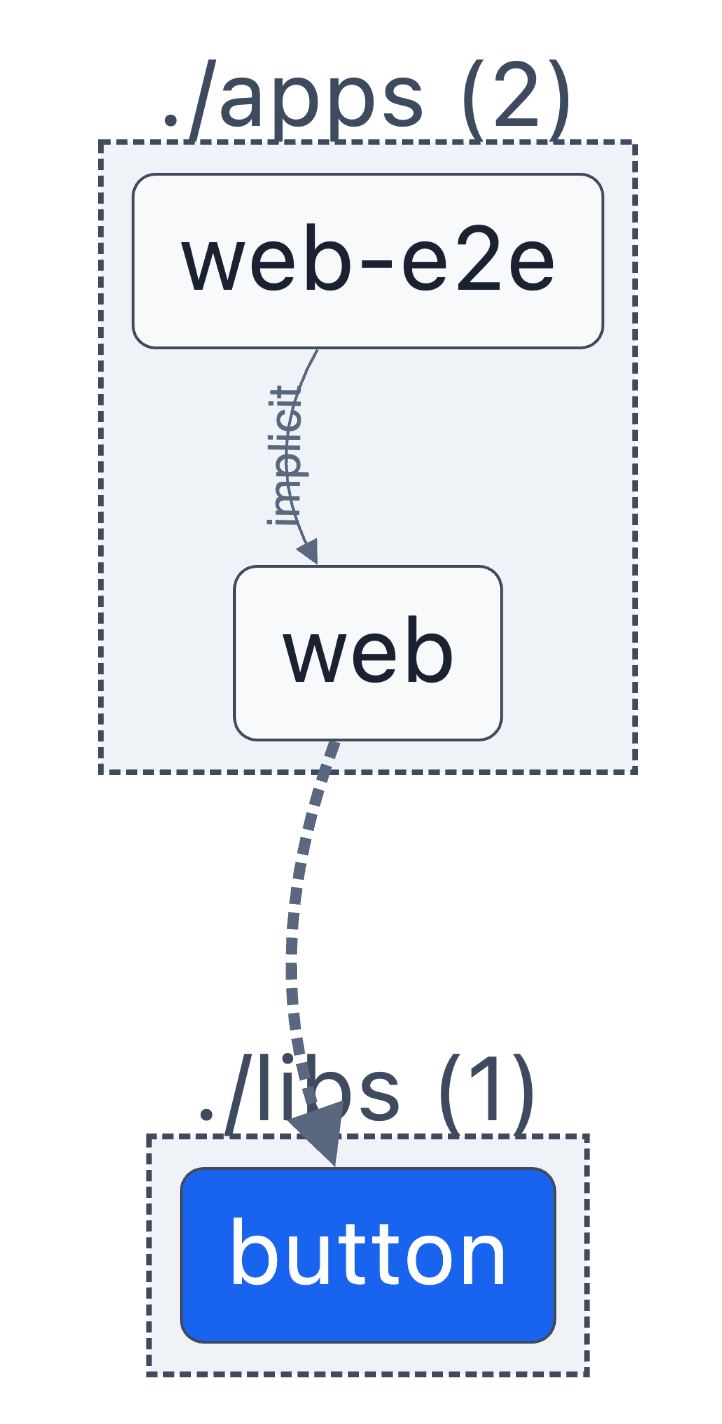

CIPE Affected Project Graph -- button affected

And the affected project graph also reflects that change properly.

Does your Affected Project Graph only show affected projects and not touched?
  • If your commit has changes to one of the global inputs, your projects will be affected but no specific project is touched directly.
  • Make sure you are calling start-ci-run to start using Nx Agents for touched projects to be recorded. Learn more about Nx Agents
