Nx and the Angular CLI

Nx evolved from being an extension of the Angular CLI to a fully standalone CLI working with multiple frameworks. As a result, adopting Nx as an Angular user is relatively straightforward. This guide explores some of the similarities and in particular, added benefits of using Nx over the Angular CLI for your Angular project.

Not just for Monorepos: Project Setup & Structure

Nx is not just exclusively for monorepos, but can create

  • a single-project workspace (basically what the Angular CLI gives you)
  • a monorepo workspace (multiple projects in a single repo)

You can check out the Angular single-project workspace tutorial to learn more about it.

Generate a new project

You can create a new Nx single-project workspace using the following command:

npx create-nx-workspace myngapp --preset=angular-standalone

Want a monorepo instead?

You can use the --preset=angular-monorepo to start with a monorepo structure. Note, however, that you can start simple and migrate to a monorepo later.

The single-project workspace setup follows a similar structure to what the Angular CLI generates.

1└─ myngapp 2 ├─ ... 3 ├─ src 4 │ ├─ app 5 │ │ ├─ app.component.css 6 │ │ ├─ app.component.html 7 │ │ ├─ app.component.spec.ts 8 │ │ ├─ app.component.ts 9 │ │ └─ app.module.ts 10 │ ├─ assets 11 │ ├─ favicon.ico 12 │ ├─ index.html 13 │ ├─ main.ts 14 │ └─ styles.css 15 ├─ nx.json 16 ├─ package.json 17 ├─ project.json 18 ├─ ... 19

project.json vs angular.json

Nx configures projects and their targets in a format similar to angular.json. However, instead of storing the configuration for every project in a single large angular.json file at the root, the configuration is split into multiple project.json files, one for each project.

Smaller, focused config files allow you to quickly find the relevant configuration for the project you are working on, and editing a single project configuration does not cause the nx affected command to rerun all the tests in the repo. This conversion is done automatically when you run nx init.

Note that even though the configuration is split, everything works similarly. Migrations and schematics written with the Angular devkit that expect a single angular.json file will receive a single file. Nx is smart, so it merges all the files in memory to make those migrations and schematics work.

More details: Nx project configuration.

Executors vs. Builders, Generators vs. Schematics

Nx comes with slightly different terminology than the Angular CLI for some features.

Angular Builders are called Executors in Nx but work very much similarly. You use them in your project configuration to define how to build, test, lint, and serve your project. You can use both Nx executors from Nx Plugins or Angular Builders from the Angular Devkit.

1{ 2 "name": "myngapp", 3 ... 4 "targets": { 5 "build": { 6 "executor": "@angular-devkit/build-angular:browser", 7 ... 8 }, 9 ... 10 } 11} 12

Angular Schematics are called Generators in Nx. You can invoke them in the same way as you would with the Angular CLI, but you use the nx command instead of ng:

npx nx g @nx/angular:component my-component

Nx 15 and lower use @nrwl/ instead of @nx/

You can also run Angular Schematics through the Nx ClI. So something like this works as well:

npx nx g @schematics/angular:component my-component

Running Commands

Commands are run in the very same way as with the Angular CLI. You just switch ng with nx. For example:

npx nx serve

Nx has more abilities to run commands in parallel, just for specific projects etc. Find out more in the docs.

Integrating with Modern Tools

An Angular-based Nx Workspace already comes with a lot of batteries included:

But Nx expands beyond just that, offering automated integration with a lot of modern tools such as Storybook or Tailwind just to mention a few.

'ng update' vs. 'nx migrate'

Like the Angular CLI, Nx has a command that allows you to upgrade your existing workspace tools, packages, and source code to the next version. Instead of ng update, you run nx migrate:

npx nx migrate latest

What's the difference?

nx migrate is a much-improved version of ng update. It runs the same migrations but allows you to:

nx migrate does this by splitting the process into two steps. nx migrate latest creates a migrations.json file with a list of all the migrations needed by Nx, Angular, and other packages. You can then modify that file before running nx migrate --run-migrations to execute those migrations.

To reiterate: nx migrate runs the migrations written by the Angular team the same way ng update runs them. So everything should still work. You just get more control over how it works. You can learn more in our docs about Automate Updating Dependencies.

'ng add'

ng add is not natively supported by Nx. We want a consistent package install experience for developers working with Angular or non-Angular packages.

Instead, we recommend running:

npm install [package] && nx g [package]:ng-add

Replace [package] with the package name you're trying to add.


Nx is designed to be fast. The Angular CLI leverages Webpack's caching, which Nx also does since it relies on the Angular Devkit when it comes to compiling or running apps. But Nx goes way beyond that, introducing features vital for a fast CI experience, mainly when you have a monorepo.

Features like

And, Nx already uses fast, modern tooling like ESBuild, Vite, Vitest and Rspack for non-Angular stacks. So once Angular is ready to use these tools, Nx will also be ready.

Editor Integration

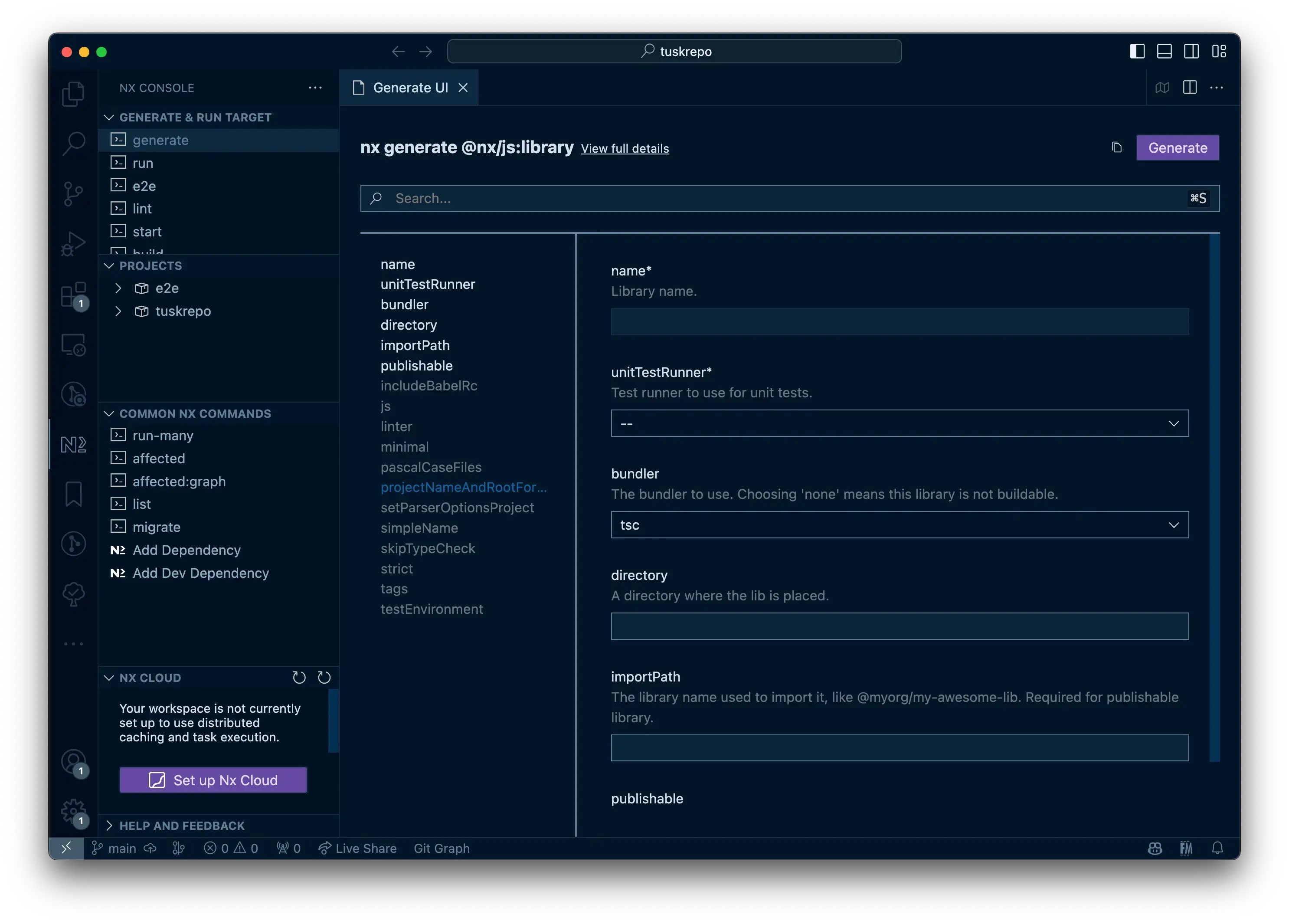

Nx goes beyond being just a CLI and comes with Nx Console, a VSCode and WebStorm extension allowing you to run commands, generate code and visualize your workspace.

Nx Console screenshot

Scaling: Start Simple, Grow to a Monorepo

Nx is really made to scale with you. You can

Visualize your Workspace

As you start modularizing your Angular workspace, Nx can visualize it using the nx graph command or via Nx Console directly in your editor.


Learn more about the graph features here.

Extensible and Customizable: Make it fit your own needs

Nx is built to be extensible. Just like the packages published by the Nx core team you can create your own Nx plugins by extending Nx.

This can be as simple as using run-commands to integrate custom commands into the project configuration or as complex as creating your own local executor.


And if you ever need to expand beyond Angular or diversify your stack, you can still keep using Nx, which is battle-tested with many different technologies.

Being the best CLI for you!

The Nx team's only mission is to build the best CLI for you. We don't build frameworks or libraries; we make tools for them!


If you're convinced, then here are some options for you:
