Okta SAML Auth

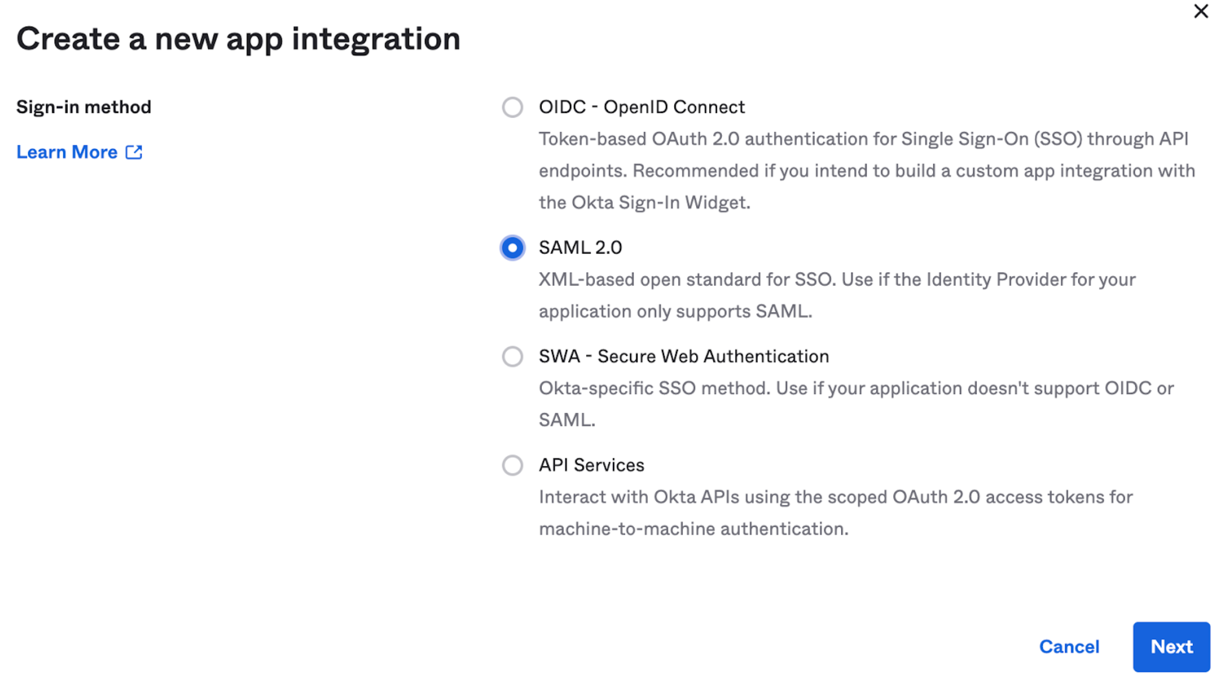

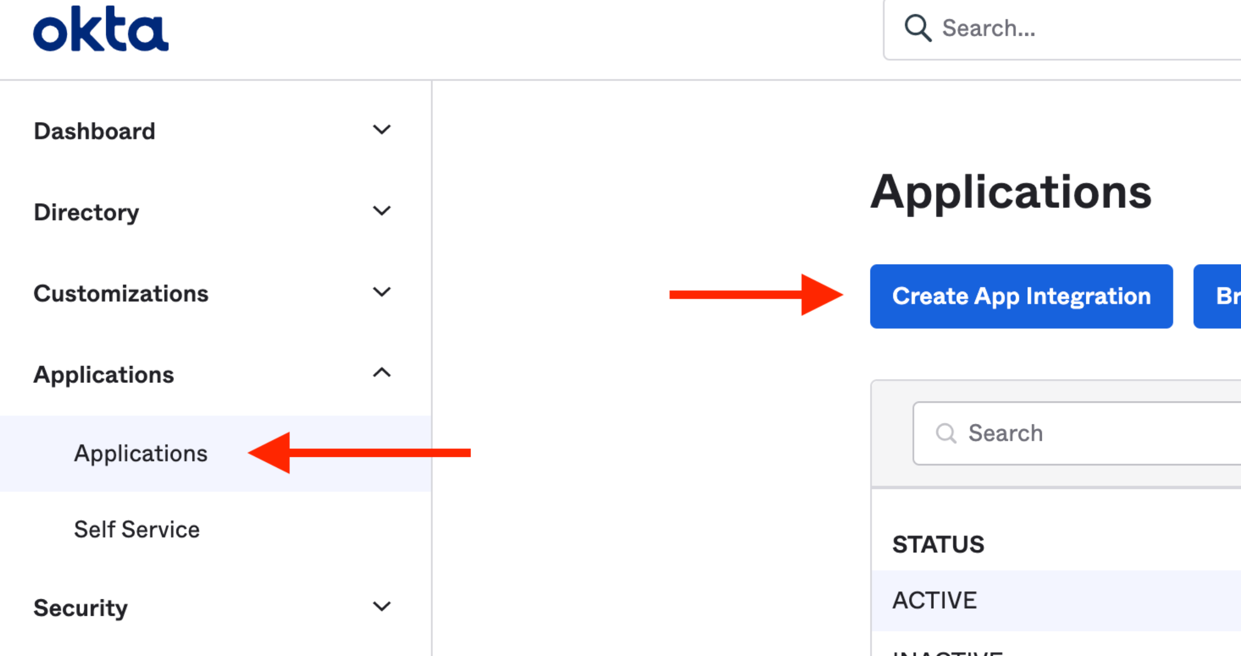

1. Create a new Okta App Integration:

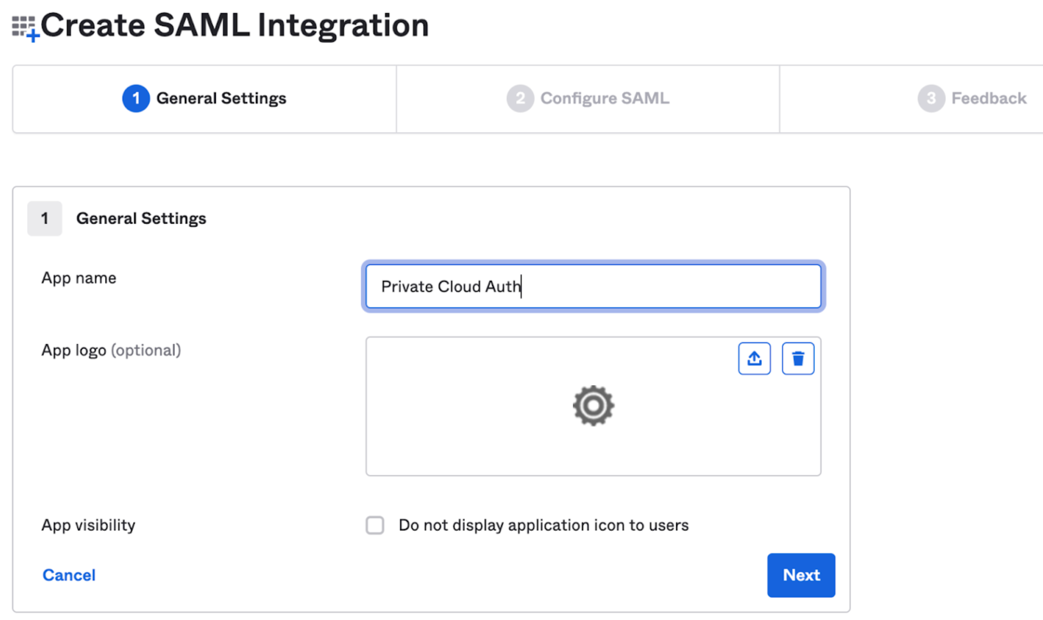

2. Give it a name:

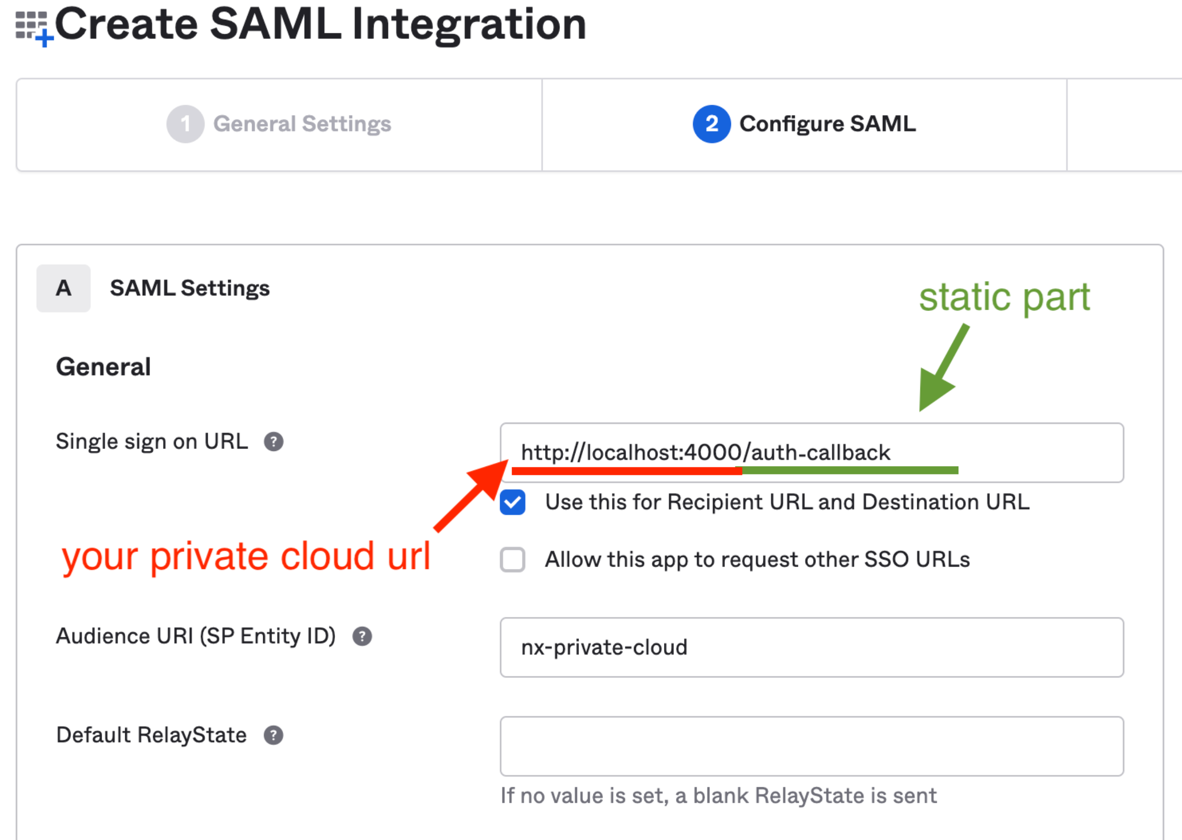

3. On the Next page, configure it as below:

   1. The Single Sign On URL needs to point to your Nx Cloud instance URL and ends with /auth-callback
   2. The Audience should be nx-private-cloud

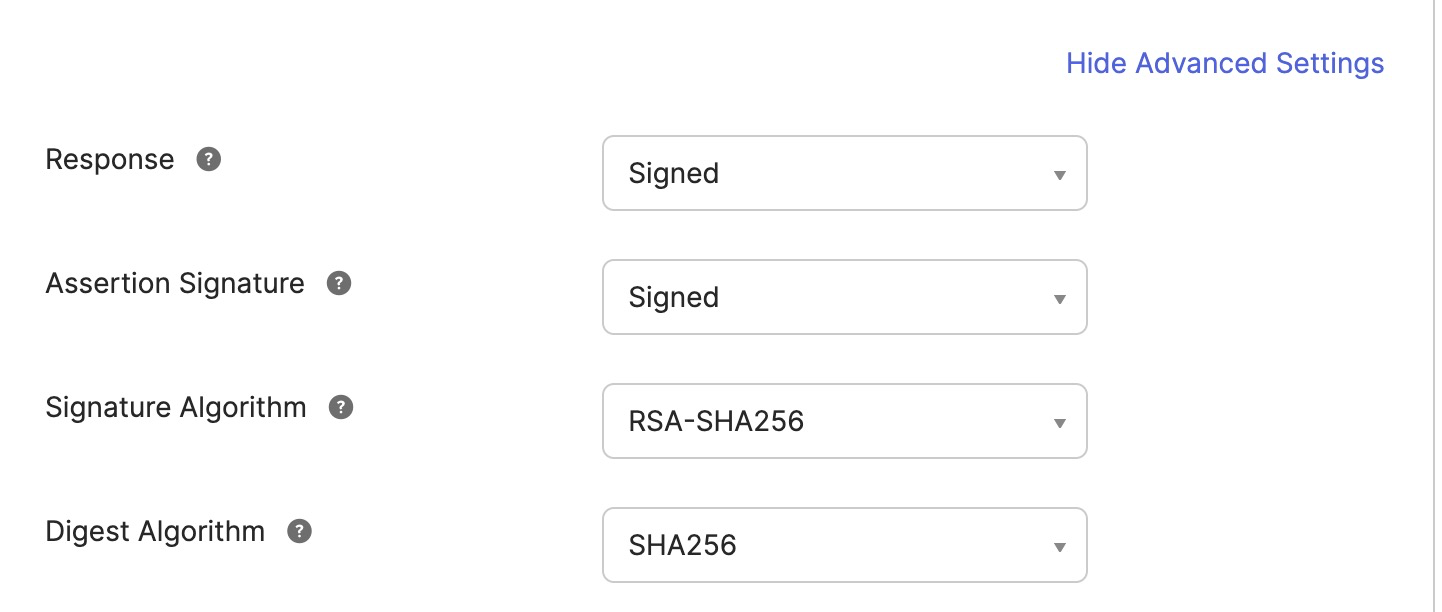

4. Under Advanced Settings, make sure both Response and Assertion are set to Signed

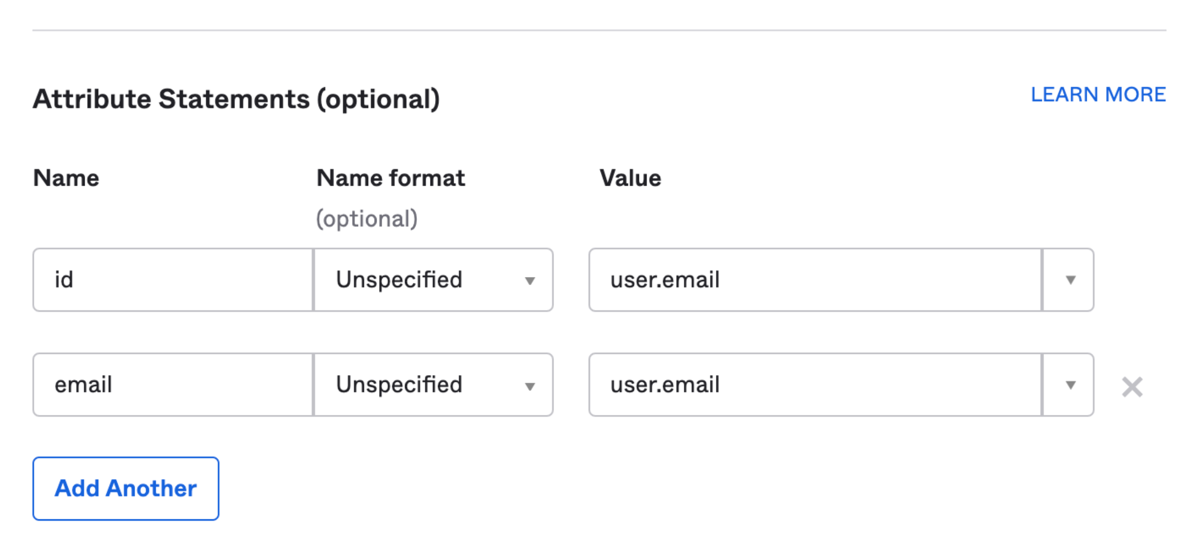

5. Scroll down to attribute statements and configure them as per below:



6. Click “Next”, and select the first option on the next screen.

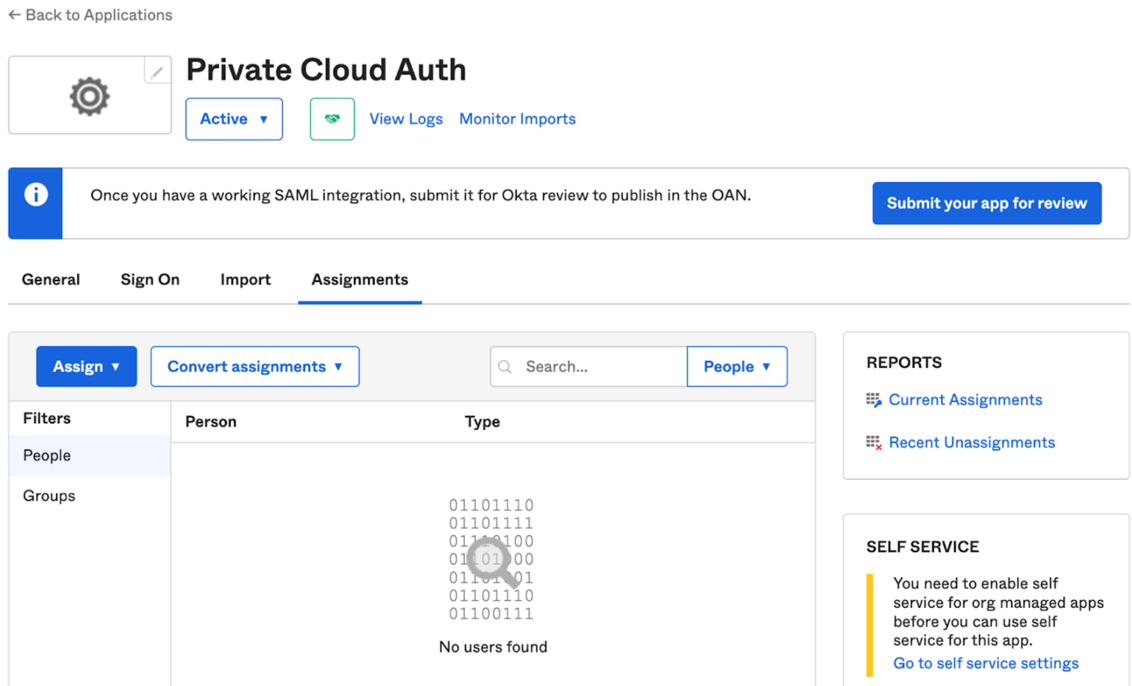

7. Go to the assignments tab and assign the users that can login to the Nx Cloud WebApp:

   1. Note: This just gives them permission to use the Nx Cloud web app with their own workspace. Users will still need to be invited manually through the web app to your main workspace.

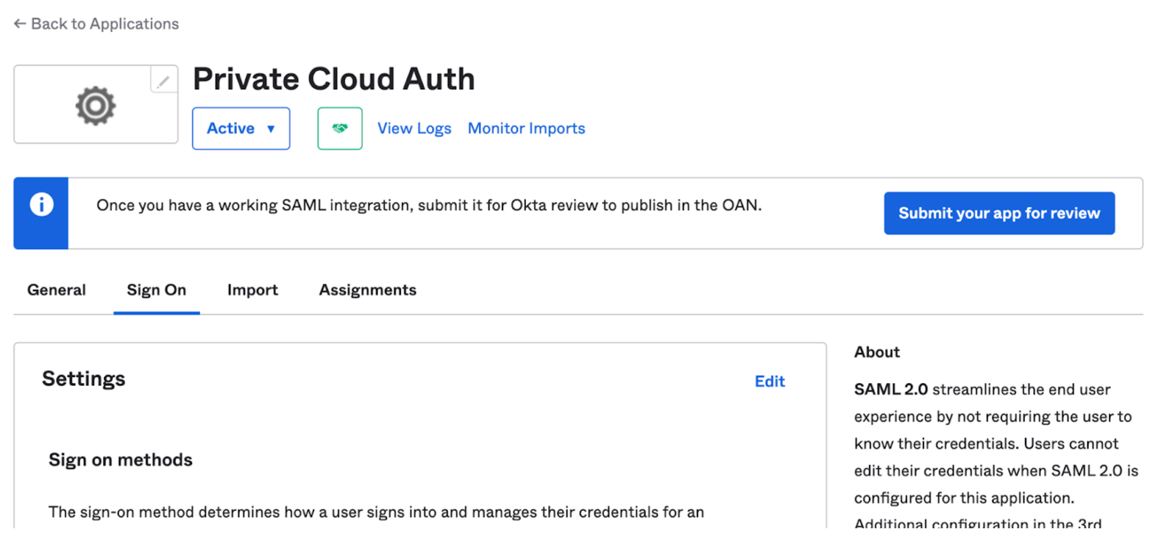

8. Then in the Sign-On tab scroll down:

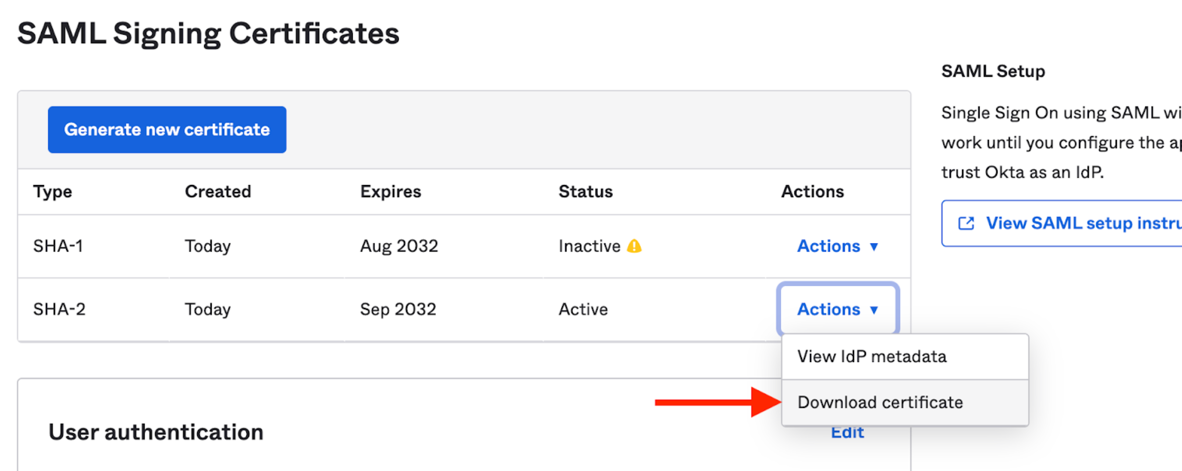

9. Scroll down and from the list of certificates, download the one with the "Active" status:



10. Extract the downloaded certificate value as a one-line string:

    1. awk 'NF {sub(/\r/, ""); printf "%s\\n",$0;}' okta.cert
    2. We'll use this later

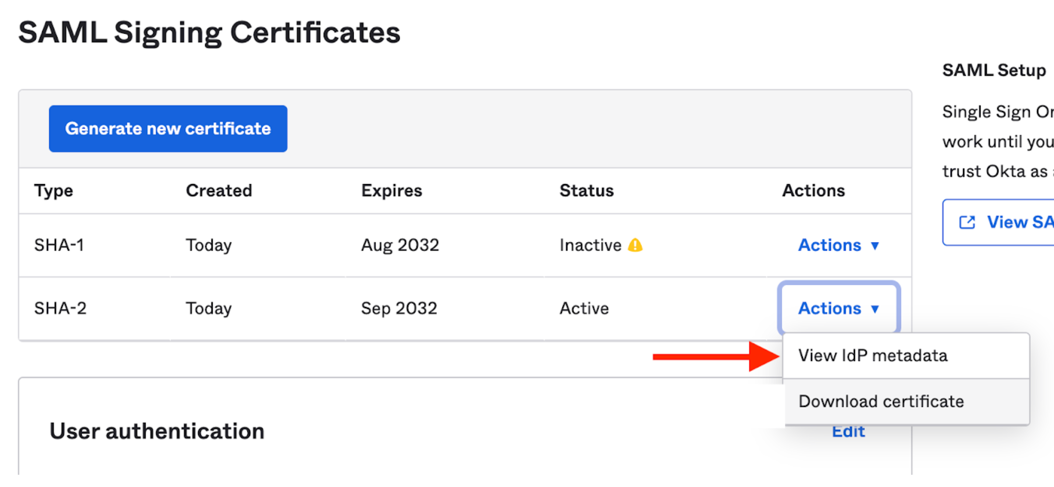

11. Then view the ldP metadata:

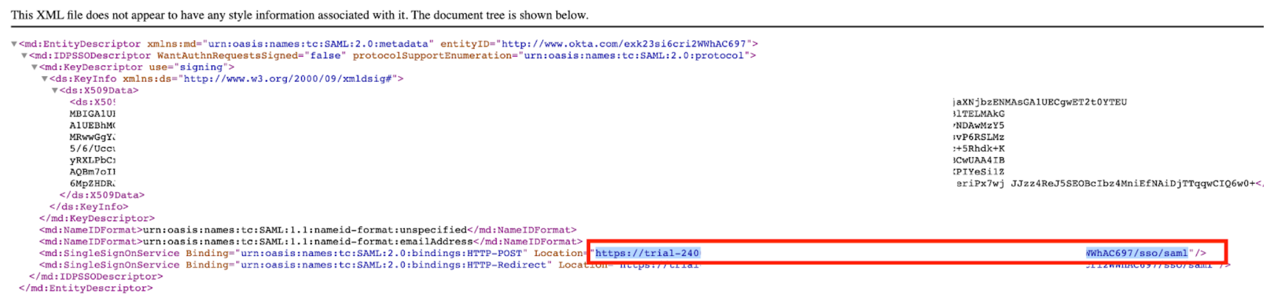

12. Then find the row similar to the below, and copy the highlighted URL (see screenshot as well):

    1. html <md:SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="https://trial-xxxxx.okta.com/app/trial-xxxxx_nxcloudtest_1/xxxxxxxxx/sso/saml" />



SCIM Provisioning

SCIM (System for Cross-domain Identity Management) provisioning enables automatic user lifecycle management for Nx Cloud through Okta. Once configured, Okta will automatically:

• Provision new users when they're added to designated groups
• Update user permissions when group memberships change
• Deprovision users when they're removed from groups or deactivated

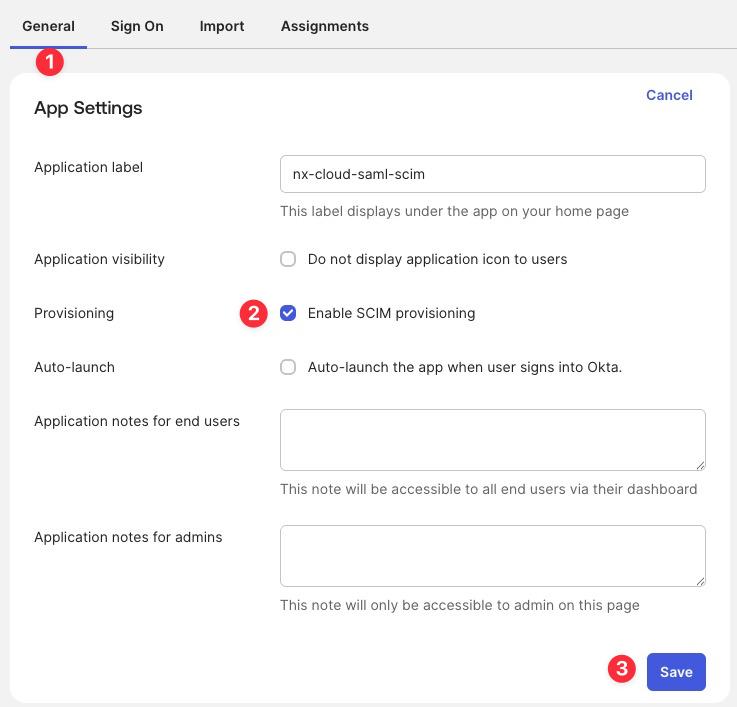

Enable SCIM provisioning

Select the SAML application you created in the above setup steps.

1. Navigate to General then click Edit
2. Check Enable SCIM Provisioning
3. Click Save

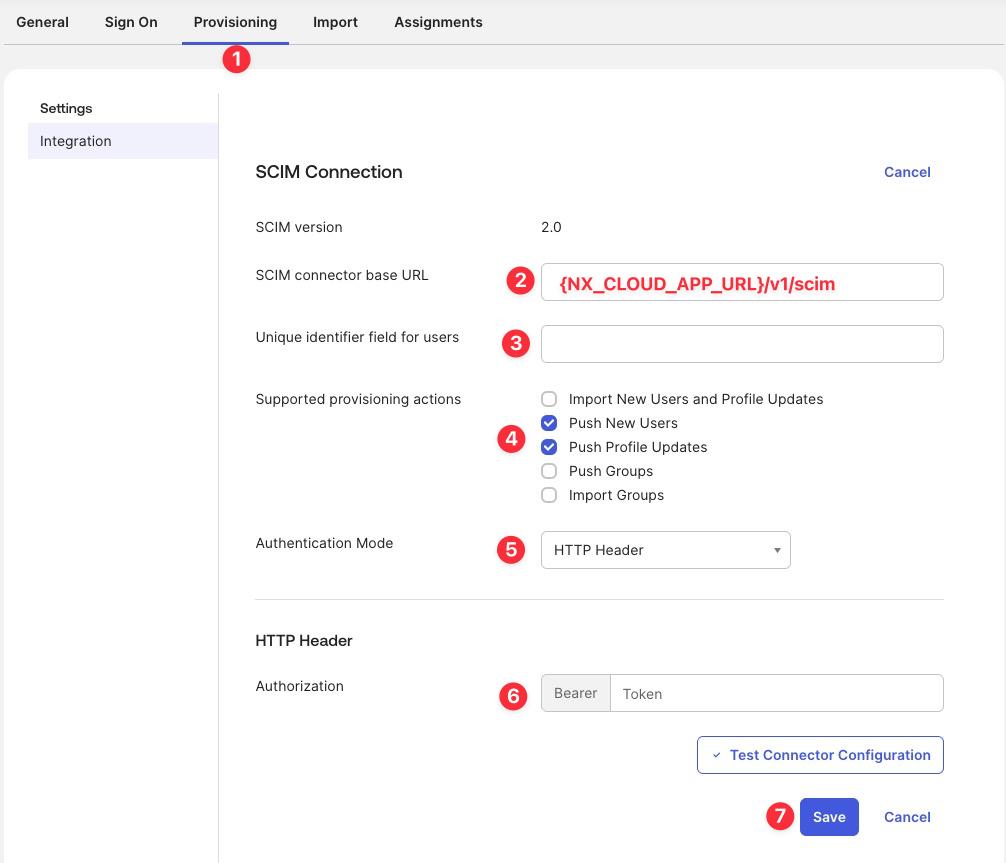

Configure SCIM

After SCIM provisioning is enabled, Provisioning tab will become available for the SAML application.

1. Navigate to Provisioning then click Edit
2. Enter {NX_CLOUD_APP_URL}/v1/scim for connector base URL
   • NX_CLOUD_APP_URL is provided by your DPE
3. Enter email for unique identifier field
4. Check Push New Users and Push Profile Updates
5. Select HTTP Header for authentication mode
6. Enter the JWT token
   • JWT token is provided by your DPE
7. Click Save

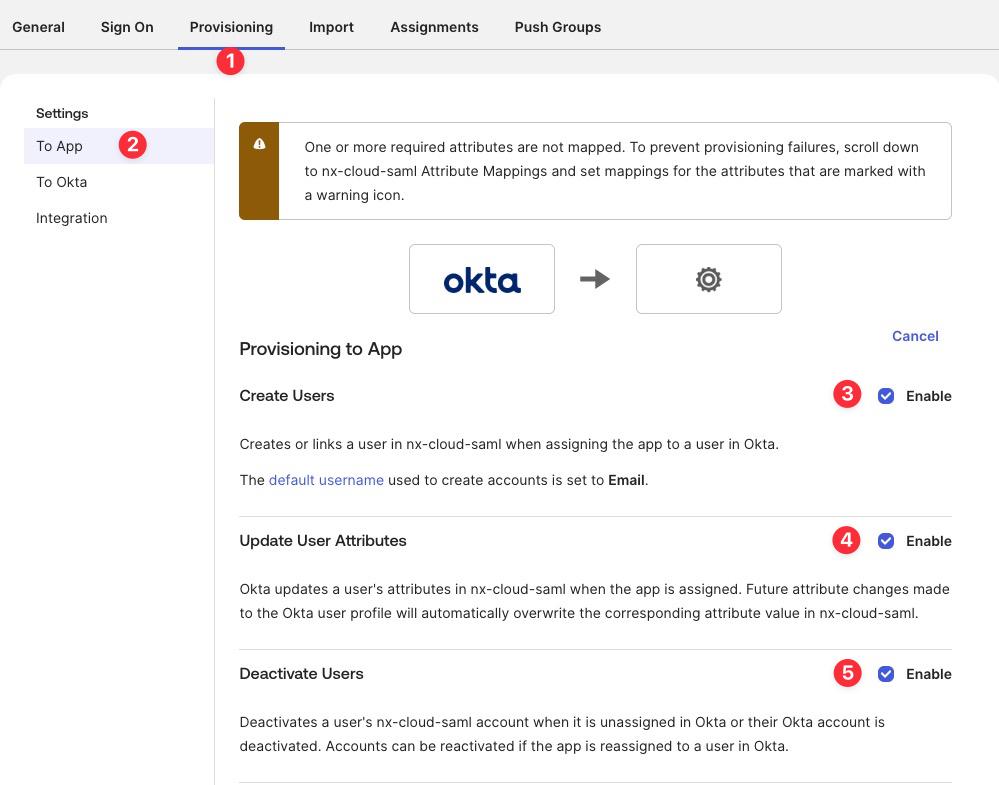

After SCIM provision is configured, To App settings will become available under Provisioning tab

1. Navigate to Provisioning
2. Click To App then click Edit
3. Enable Create Users
4. Enable Update User Attributes
5. Enable Deactivate Users
6. Click Save

Add custom attribute for access specification

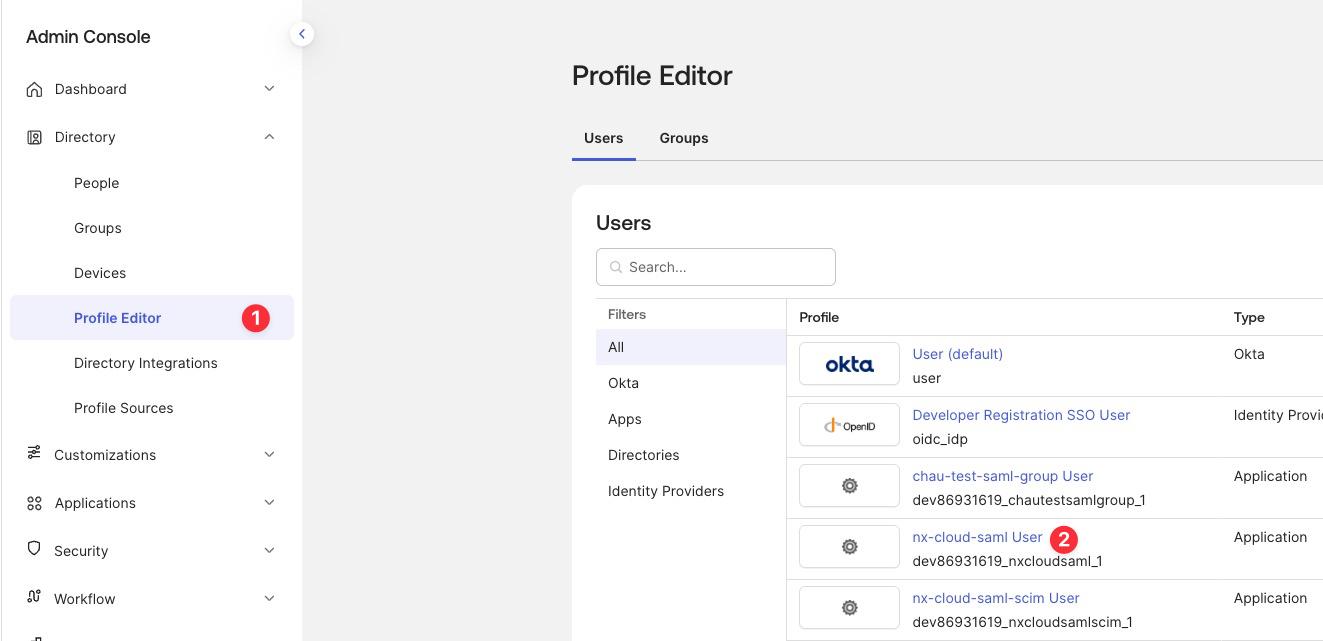

1. Under Directory section, navigate to Profile Editor
2. Select your SAML application

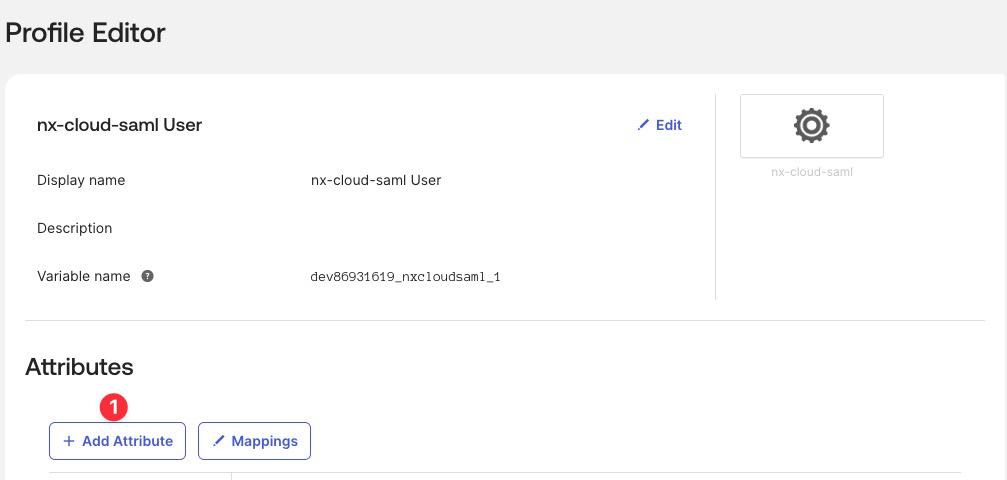

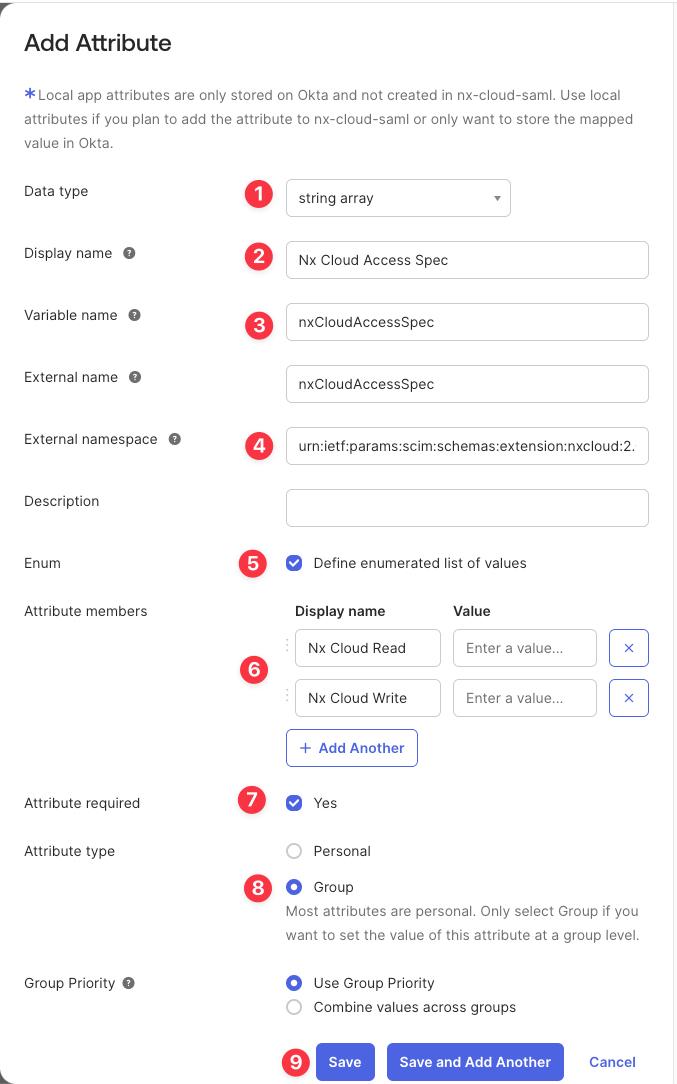

1. Click Add Attribute

1. Select string array for data type
2. Enter Nx Cloud Access Spec for display name
3. Enter nxCloudAccessSpec for variable name
   • External name will be populated automatically
4. Enter urn:ietf:params:scim:schemas:extension:nxcloud:2.0:User for external namespace
5. Check Enum
6. Define enum values
   • Read with nxcloud:organization:{organization_id}:read
   • Write with nxcloud:organization:{organization_id}:write
   • organization_id can be provided by your DPE
7. Check Attribute required
8. Select Group for attribute type
9. Click Save

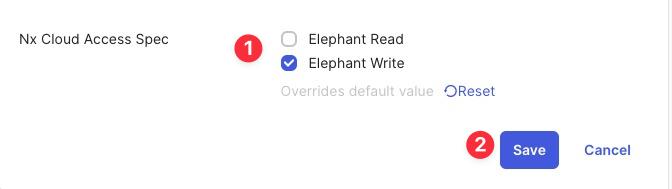

Provision users

Select the appropriate nxCloudAccessSpec value when you assign your SAML application to your Groups.

Connect Your Nx Cloud Installation to Your SAML Set Up

Contact your developer productivity engineer to connect your Nx Cloud instance to the SAML configuration.
